hiclover bio waste incineration

HICLOVER now offer a full range of containerized incineration systems, placing us at the forefront of the latest transportation and industrial trends. Containerization enables immediate waste management as the units are pre-assembled and pre-installed.
Containerization is the most feasible and viable option in contrast to the construction of on-site facilities and housing structures, eliminating the man power and costs involved. The system has the added benefit of total mobility (both local and international), and is ideal for military and civil camps and remote locations where infrastructure is scarce.

※Main Feature:
— Double Combustion Chamber
— Double Italy Burner
–Burning Rate: 10-100kgs per hour
–Combustion Chamber: 0.1M3-1.2M3
— Mobile Incinerator, Standard shipping containers, Easy to move/transport system
— Free Installation, Pre-installed incinerator, Ideal for camps
— Ultraviolet lamp sterilization inside

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L

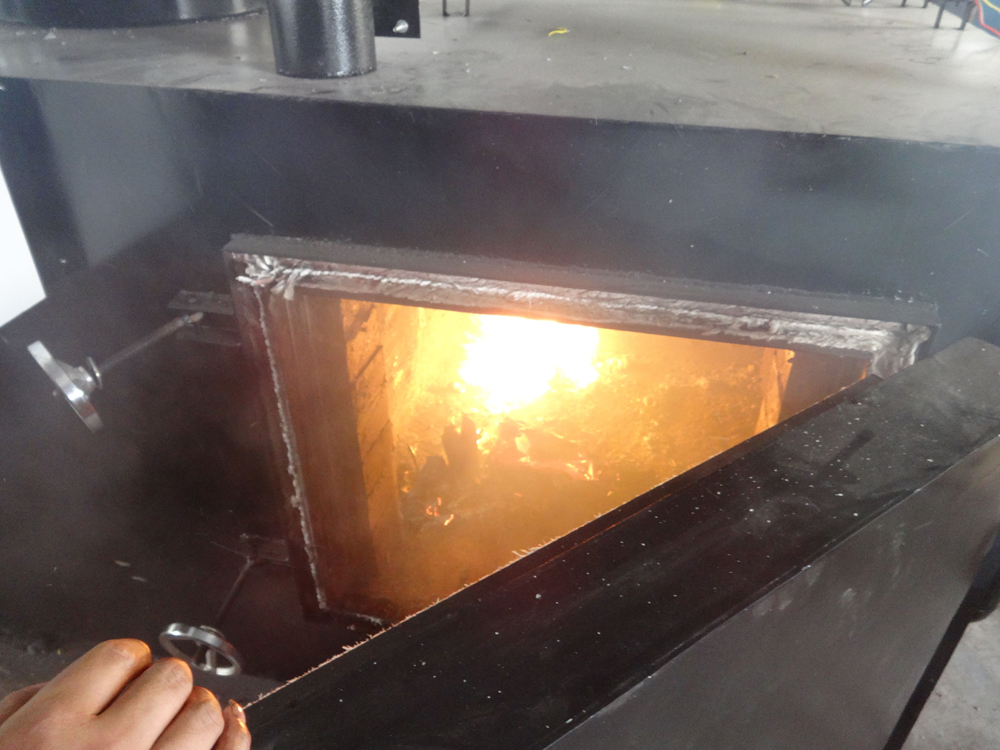

Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

Equipment Double chamber medical infectious waste incinerator Capacity 10-30 kg per hour Characteristics of waste
Mainly syringes and needles from immunization routine and campaign activities. However, the following average characteristics are considered*:
heating value above 2000 kcal/kg (8370 kJ/kg); content of combustible matter above 60%; content of non combustible solids below 5%; content of
non-combustible fines below 20%; moisture content below 30% by weight
Combustion performance: The medica waste incinerator shall be capable of reducing waste to ash not exceeding 10% of the total combustible
charges.
Outdoor installation. The medical waste incinerator will be installed outdoors. All incinerator components shall be suitable for but not
limited to outdoor shaded installation, including electric motors, be resistent to corrosion, moisture and related weather elements.

Materials of construction: The incinerator shall not have any asbestos, asbestos-containing substances, mercury thermometers, and mercury
switches. Refractory materials shall be able to meet relevant standards under ISO TC33 and CEN/TC 187.

Types of incinerator design acceptable: Dual-chamber controlled air incinerator or dual- chamber pyrolytic incinerator
